Medical Device 7.4V 1800mAh Lithium Ion Polymer Battery Pack / 2S Li-Polymer Battery Pack

Product Categories

SHENZHEN UNEME TECHNOLOGY CO.,LTD

Contact Now

Medical Device 7.4V 1800mAh Lithium Ion Polymer Battery Pack / 2S Li-Polymer Battery Pack

Name: Medical Device 74V 1800mAh Lithium Ion Polymer Battery Pack 2S LiPolymer Battery Pack
Brand: UNEMETECH
Price: 4.0 USD

Buy cheap Medical Device 7.4V 1800mAh Lithium Ion Polymer Battery Pack / 2S Li-Polymer Battery Pack product

Model Number : UNM406168

Certification : MSDS , RoHS , UN38.3 , IEC62133 , CE

Place of Origin : Guangdong, China

MOQ : 1500PCS

Price : 4.0-7.0USD/PCS

Payment Terms : T/T, Western Union, MoneyGram, Paypal, Alipay

Supply Ability : 100,000,00 Piece/Pieces Per Day

Delivery Time : 7-30 days

Packaging Details : Plastic trays, Carton

Brand Name : UNEMETECH

Model : UNM406168

Nominal Capacity : 1800mAh

Nominal Voltage : 7.4V

Max Discharging Current : 1.0CA=（1800mA）

Cycle Life : Over 500 times

Soft Pack Weight : About 65.0g

Energy Density : 400Wh/L

Warranty : 1 Year

Contact Now

Medical Device 7.4V 1800mAh Lithium Ion Polymer Battery Pack / 2S Li-Polymer Battery Pack

Model : UNM406168
Voltage : 7.4V
Capacity : 1800mAh

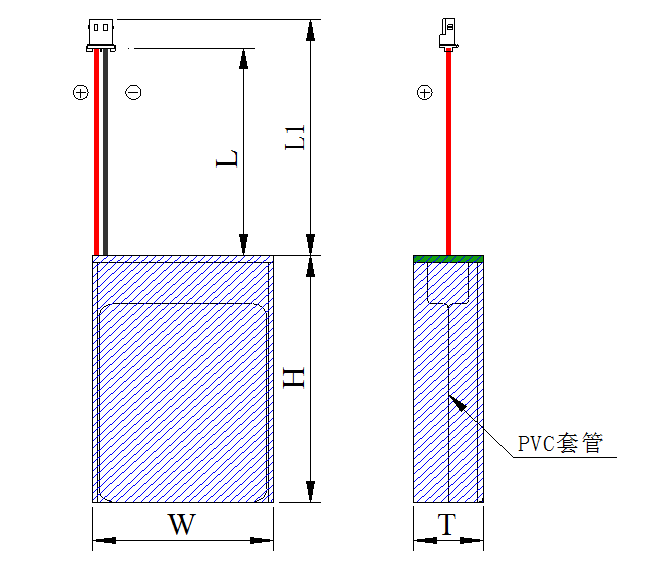

Cell Size : Max:4.0*W61.0*H68.0mm
Batterey Pack Size : Max:8.5*W61.5*H71.0mm
Application : For Medical Device / Bluetooth Product / Beauty Equipment...

Lipo Battery Pack 406168 2S 7.4V 1800mAh Parameter Table

Item		Specification	Remark
4.1.1 Typical Capacity		1800mAh	0.5C charge 0.2C discharge
Minimum Capacity		1750mAh
4.1.2 Nominal Voltage		7.4V
4.1.3 End Voltage		6.0V
4.1.4 Charging Current (Std.)		0.2CA=(360mA)	Ambient temperature 0~+45℃
4.1.5 Charging Current (Max.)		1.0CA=(1800mA)	Ambient temperature 0~+45℃
4.1.6 Charging Voltage		8.4V
4.1.7 Charging Time (Std.)		6~7.0 hours
4.1.8 Charging Time (Max.)		1~2.0 hours
4.1.9 Discharging Current (Std.)		0.2CA=(360mA)	Ambient temperature -20~+60℃
4.1.10 Continuous Discharging Current (Max.)		1.0CA=(1800mA)	Ambient temperature -20~+60℃
4.1.11 Soft Pack Internal Resistance(25℃)		<220mΩ	AC Impedance 1KHz
4.1.12 Soft pack Weight		About 65g
4.1.13Temperature range for storage	less than 1 month	-5~+45℃	Percentage of recoverable capacity 80﹪
	less than 3 month	0~+35℃
	less than 1 year	23±5℃
4.1.14Open Circuit Voltage		≥7.60V	Measure with voltmeter.
4.1.15Energy density		400Wh/L

Welcome to conatct us to advise us your required information about battery and asking for a detail specification document for review.

Li-ion Polymer Battery Pack 406168 2S 7.4V 1800mAh Pictures

Medical Device 7.4V 1800mAh Lithium Ion Polymer Battery Pack / 2S Li-Polymer Battery Pack

Packaging & Delivery&Warranty

Packaging Details : netural package or customized package .

Port : Shenzhen/Hong Kong

Lead Time : Shipped in 30 days after payment

Warranty : 12 months

Features

1, Light weight and higher energy density than any rechargeable battery

2, Installed IC chip will prevent the battery pack from over charge and over discharge.

It helps protect battery chemistry integrity and prolongs battery life.

3, Installed polyswitch will cut off power if battery discharge current more than 6.6Ah

4, Perfect for building up battery pack for medical equipment Back-up or EPS Emergency Power

5, Supply which requires compact size and lighter weight

6, The battery module is wrap by PVC
